New member after Sierra stalks help

[Flusted]

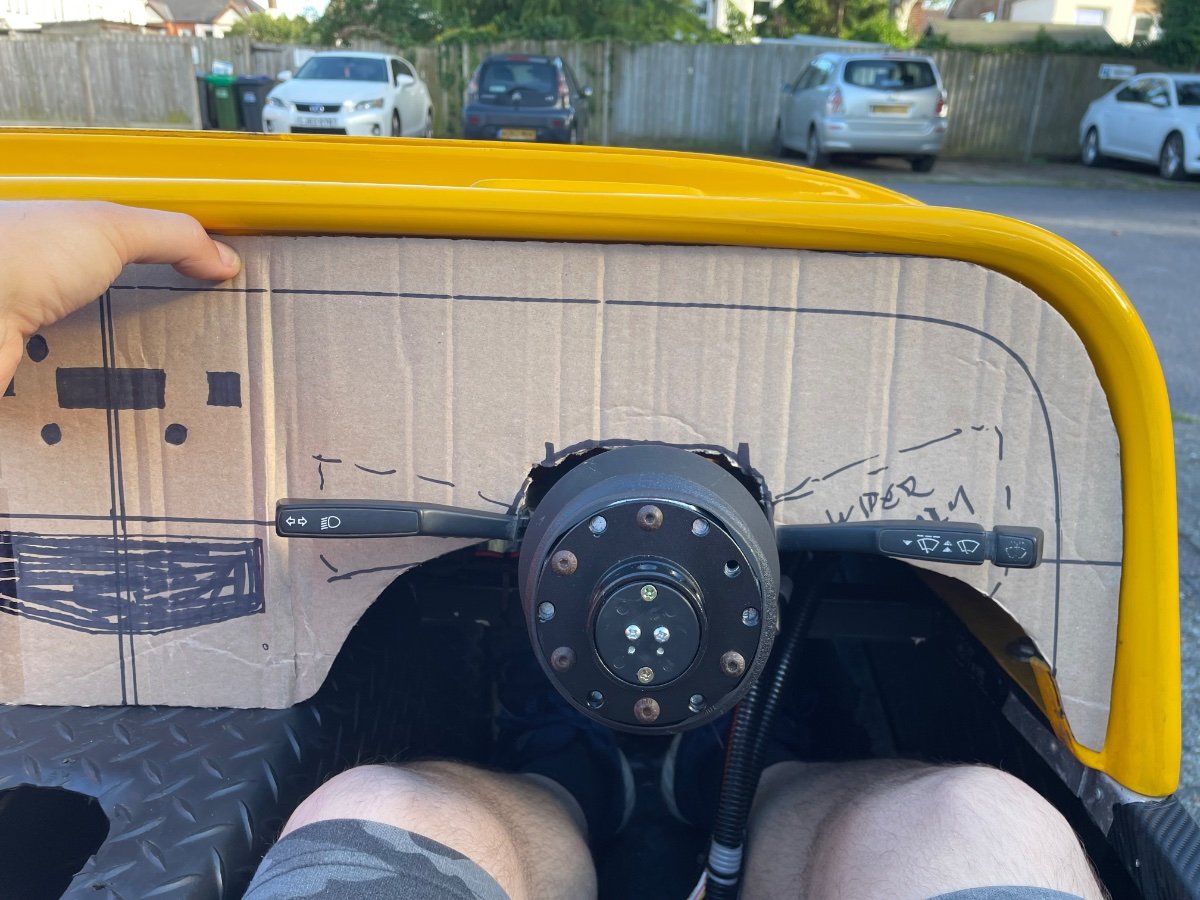

Have been asked to wire a kit car from scratch using Sierra stalks, i thought i had most of it worked out, but now I've hit a few hurdles and require some help if possible please?

I've recently stumbled upon this site and found some useful diagrams, I've done most of it from scratch using a multi meter but i now have 2 problems.

1. If i have hazard lights working with ignition off, the indicators also work with ignition off, if i swap the supplies around i have, then the hazards don't work with ignition off but do with ignition on? I'm using a pre wired kit car fuse/ relay board.

2. Wipers. I'm struggling to understand the diagrams referring to whether you feed the stalk switch with power, and that outputs to the motor, the motor has the 6 pin plug, but 3 wires come from the motor to a white plastic plug.



Any help much appreciated, guidance to what i can meter etc

[IanS]

longboarder did a lot on this.

A search shows some leads

https://www.rhocar.org/index.php?/search/&q=stalks&author=Longboarder&search_and_or=or&sortby=relevancy

[ThanasisPolitis]

I have recently done the wiring on my Tiger Cat E1 which uses a Sierra donor.

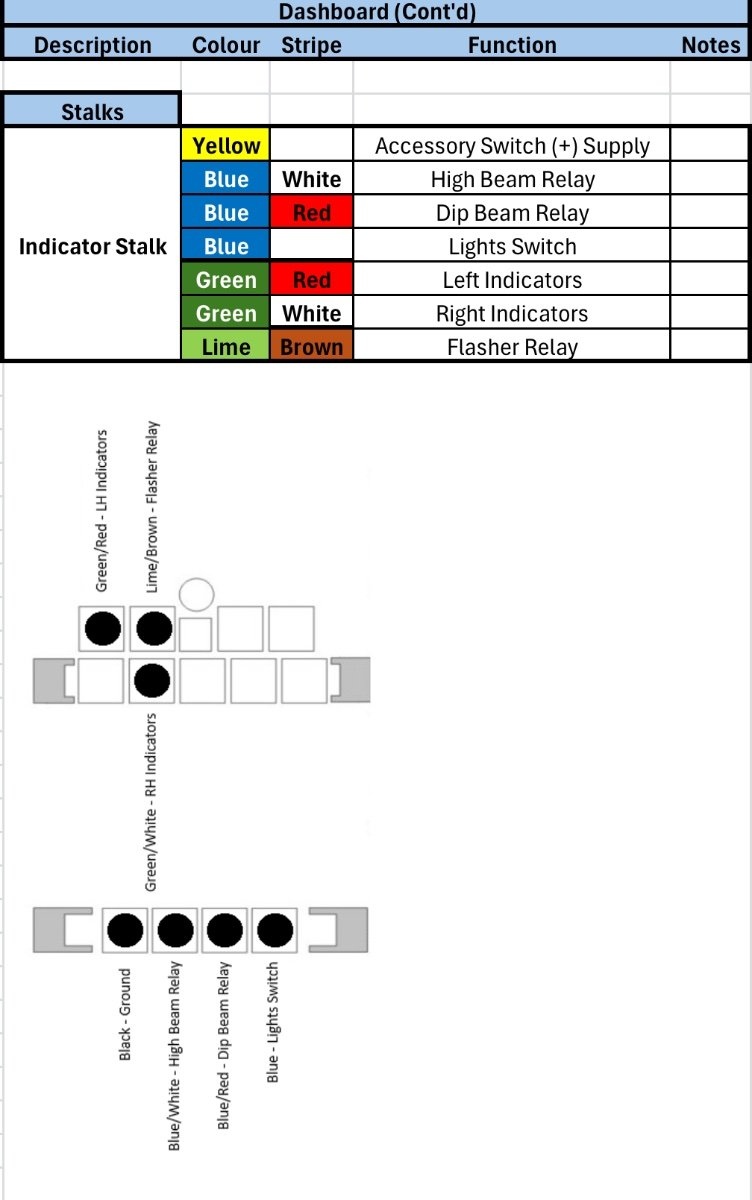

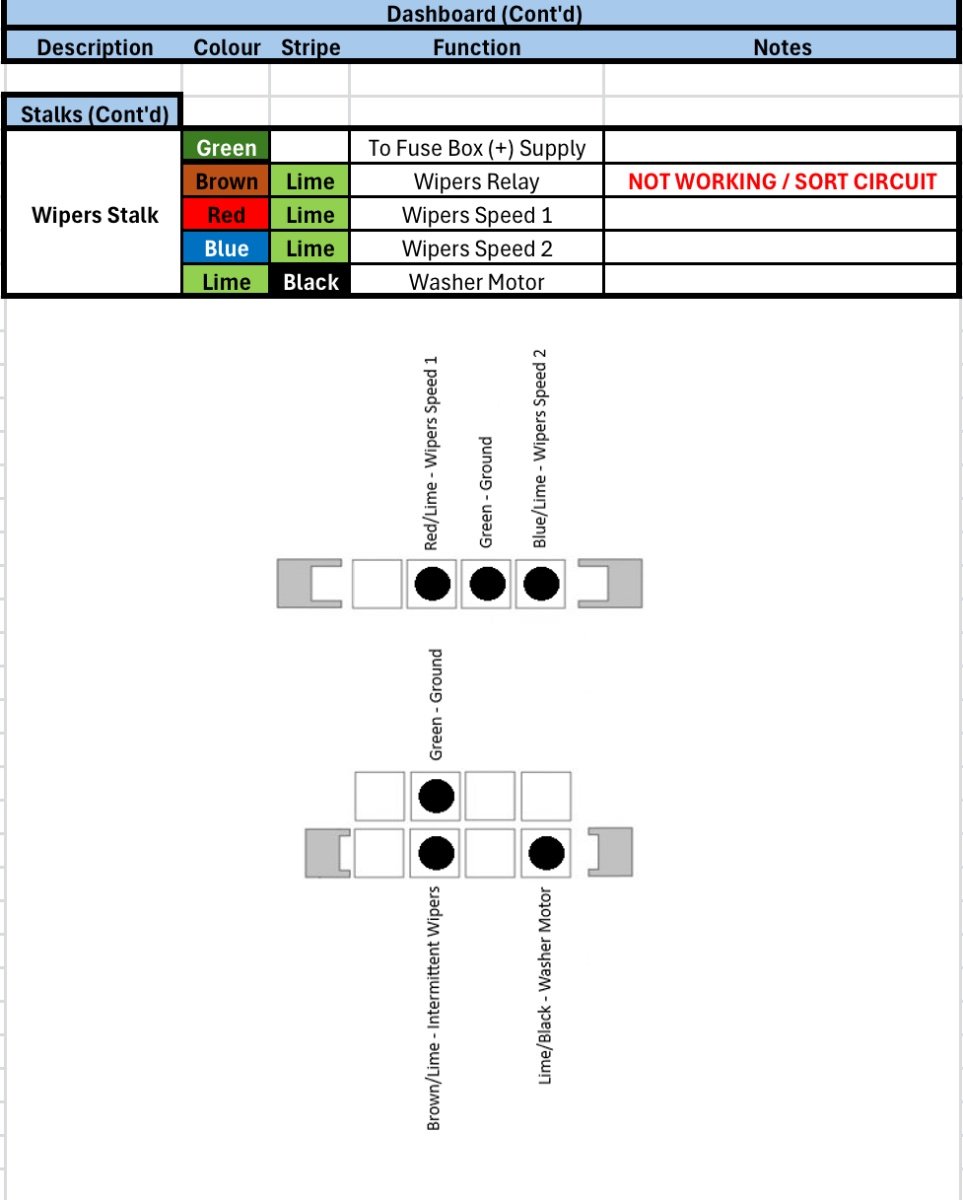

i have documented everything and done some diagrams below which might be of some use.

Best of luck!

[Pintogogo]

STALK WIRING.xlsx

[Flusted]

Thanks guys, il do some reading. i have the horn push button on the stalk which i think is early stalk, but have negative switching headlights, so later stalk?

Edited August 11, 2024 by Flusted

[IanS]

Early sierra to about mid 85 had horn push in center of steering wheel.
