Alternator Light Terminal

[Chris Scott]

Question 2

I have a Zetec Silvertop, not sure what the alternator is off….possibly Escort

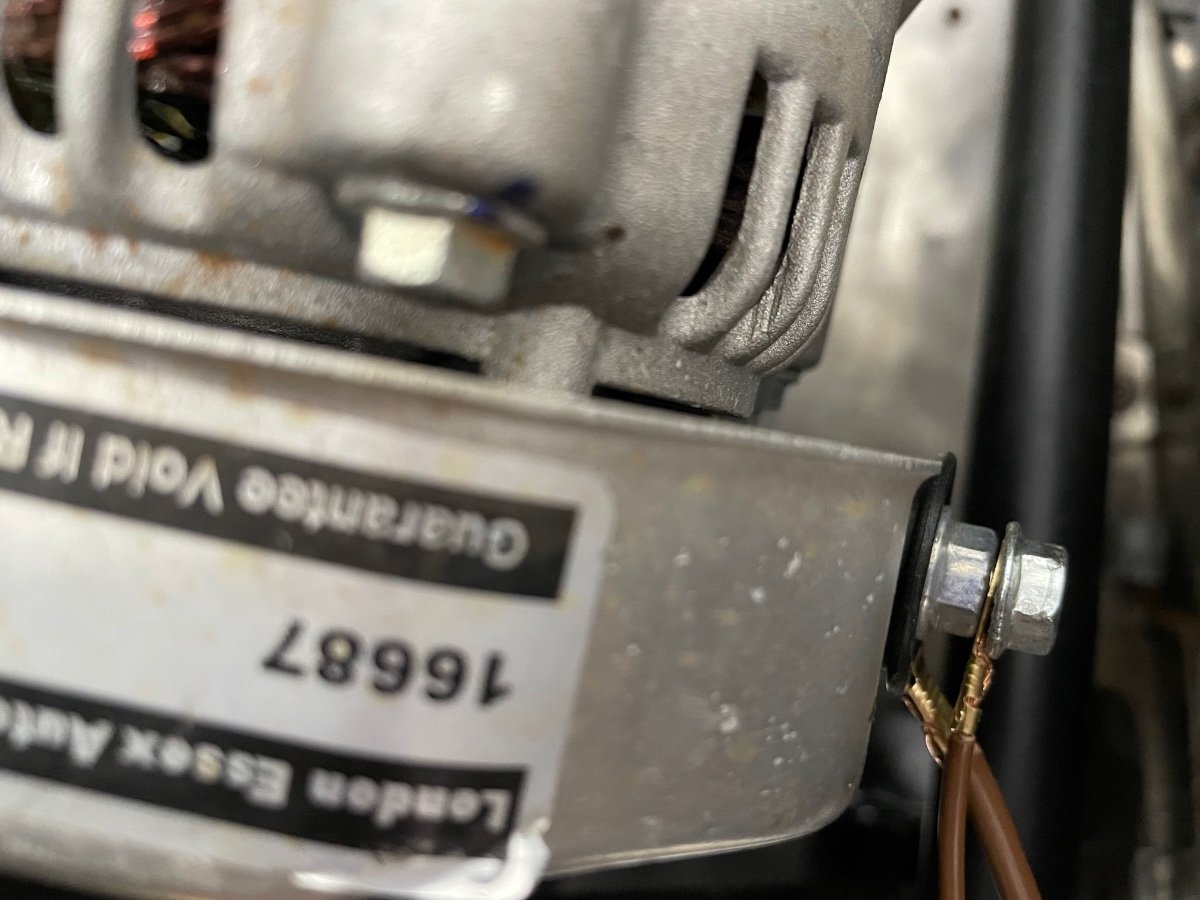

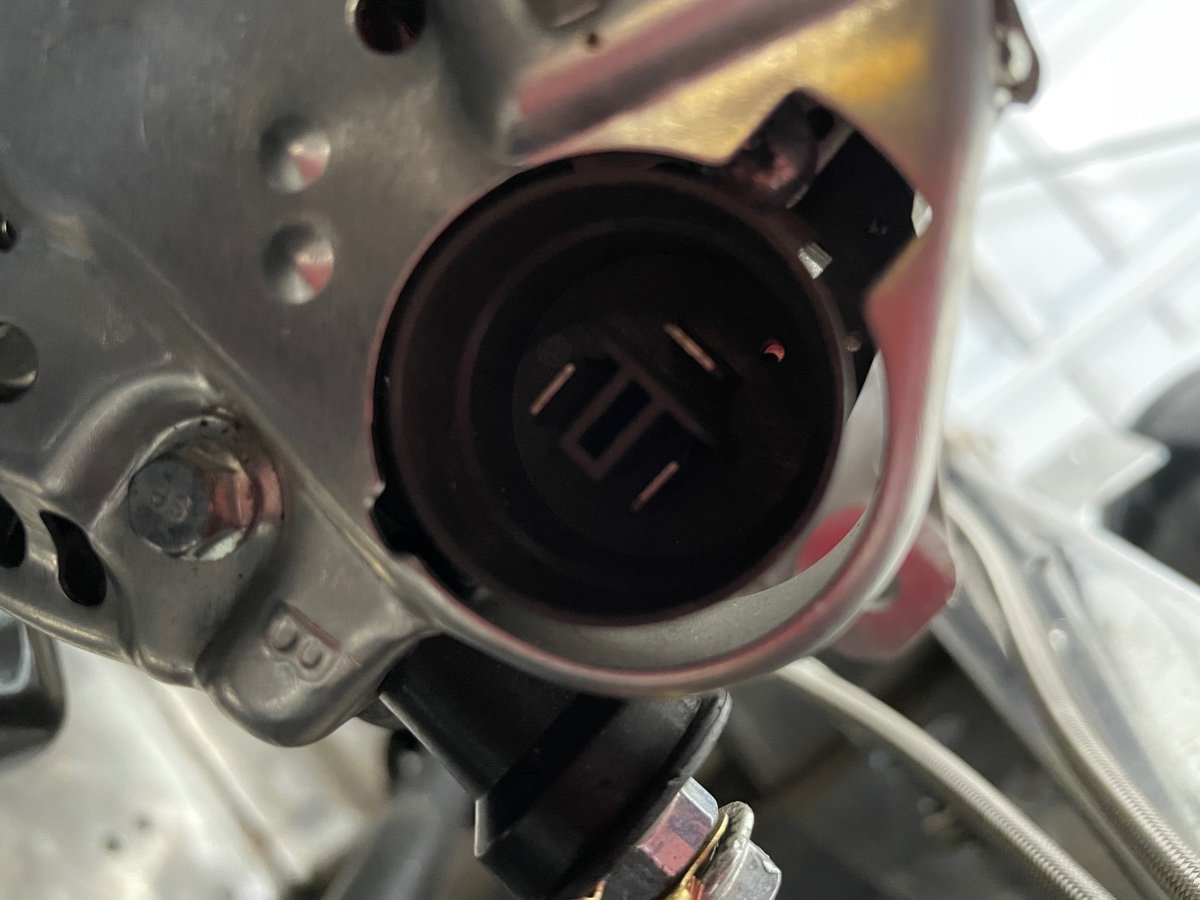

It has a post for the positive leads but a three pin plug for the charger light.

Is there any way (or process I can follow) to work out which pin I need?


Thanks

[IanS]

https://www.rhocar.org/index.php?/forums/topic/47427-another-alternator-woe/#comment-391779

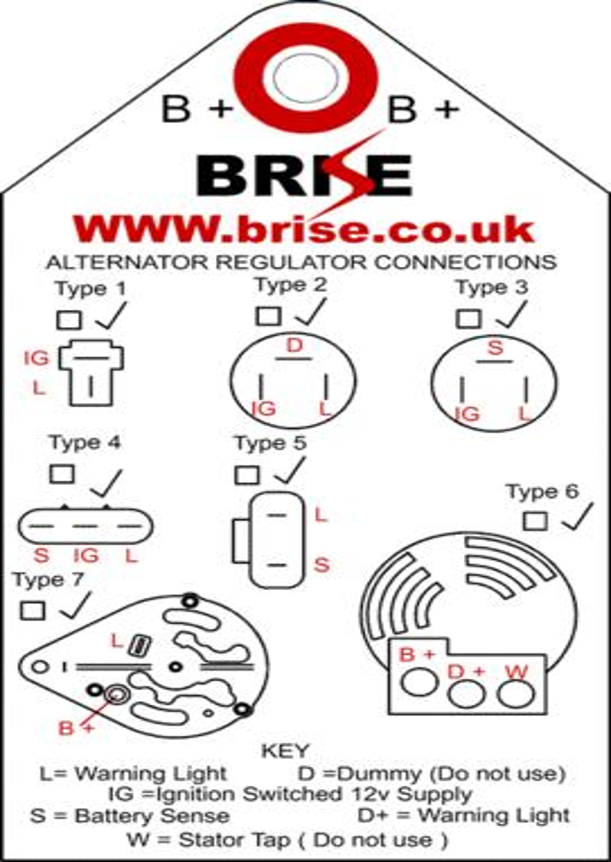

Picture of various alternator connections given near the top of this post

[Chris Scott]

26 minutes ago, IanS said:

https://www.rhocar.org/index.php?/forums/topic/47427-another-alternator-woe/#comment-391779

Picture of various alternator connections given near the top of this post

That is incredibly helpful - thank you!!!

[Pintogogo]

Hope this helps Chris

Regards

Harry
