Floor Pan and seat mounting

[Jthorneuk]

I may have worked it out from the words lol

so like this?





[maca]

Build vidieo 5



[Jthorneuk]

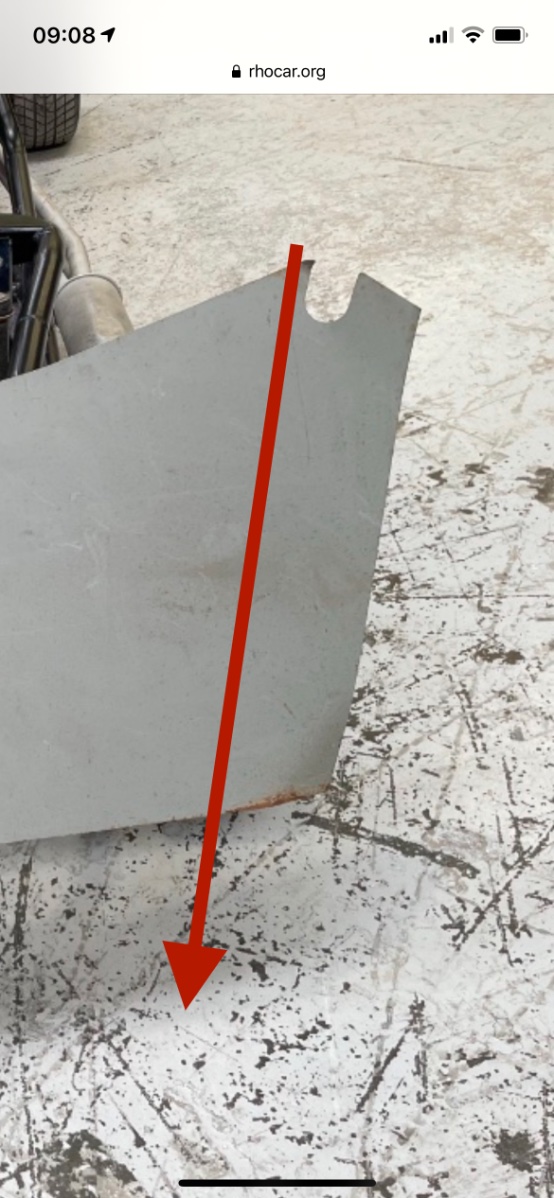

Its the rear panel im struggling with and where to fold the sides, I think I now have it correct in my head with the image above with the red line but i just need to commit to actually folding it lol

[Bob Tucker]

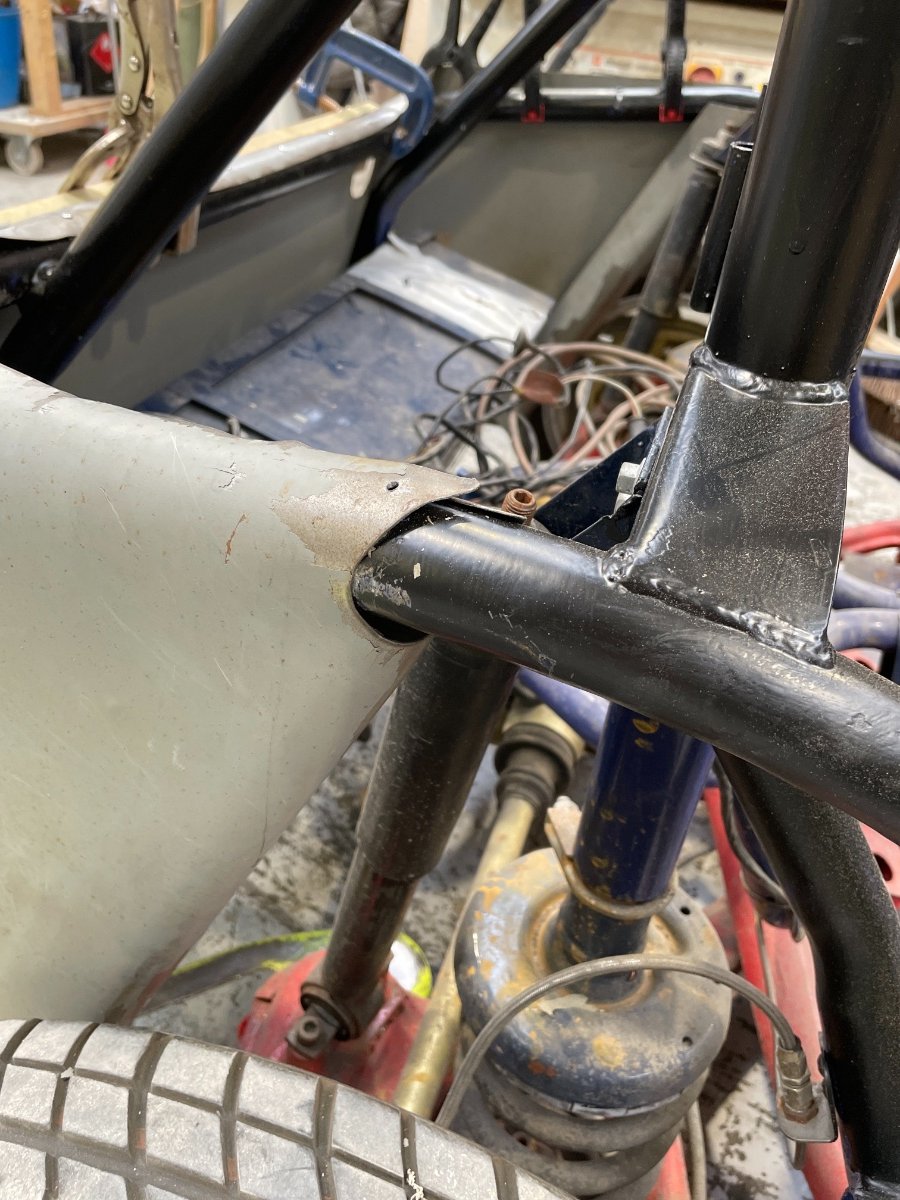

The red line is right now. The semi circle cutout needs to be central in the tight 180 degree bend.

Maca's video above helps a bit.

[Jthorneuk]

Getting there now



thanks for all the help from Everybody

[Bob Tucker]

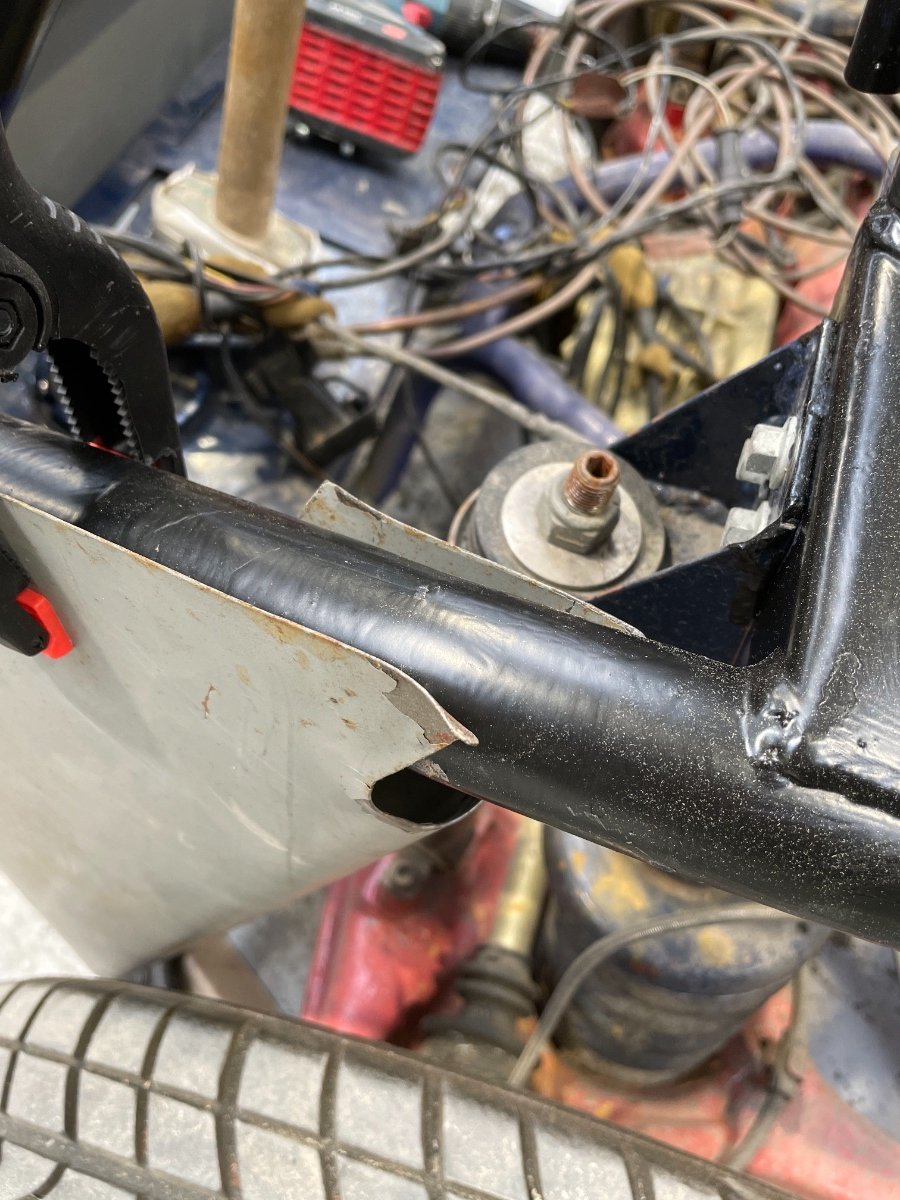

Lift the panel up if you can otherwise your fixing method will show on the outside of the car. If your screws/rivets are at the top of the tube your boot covering will mask it.

Ive shrunk my pics as far as possible but it wont let me post them. Sorry.

[Jthorneuk]

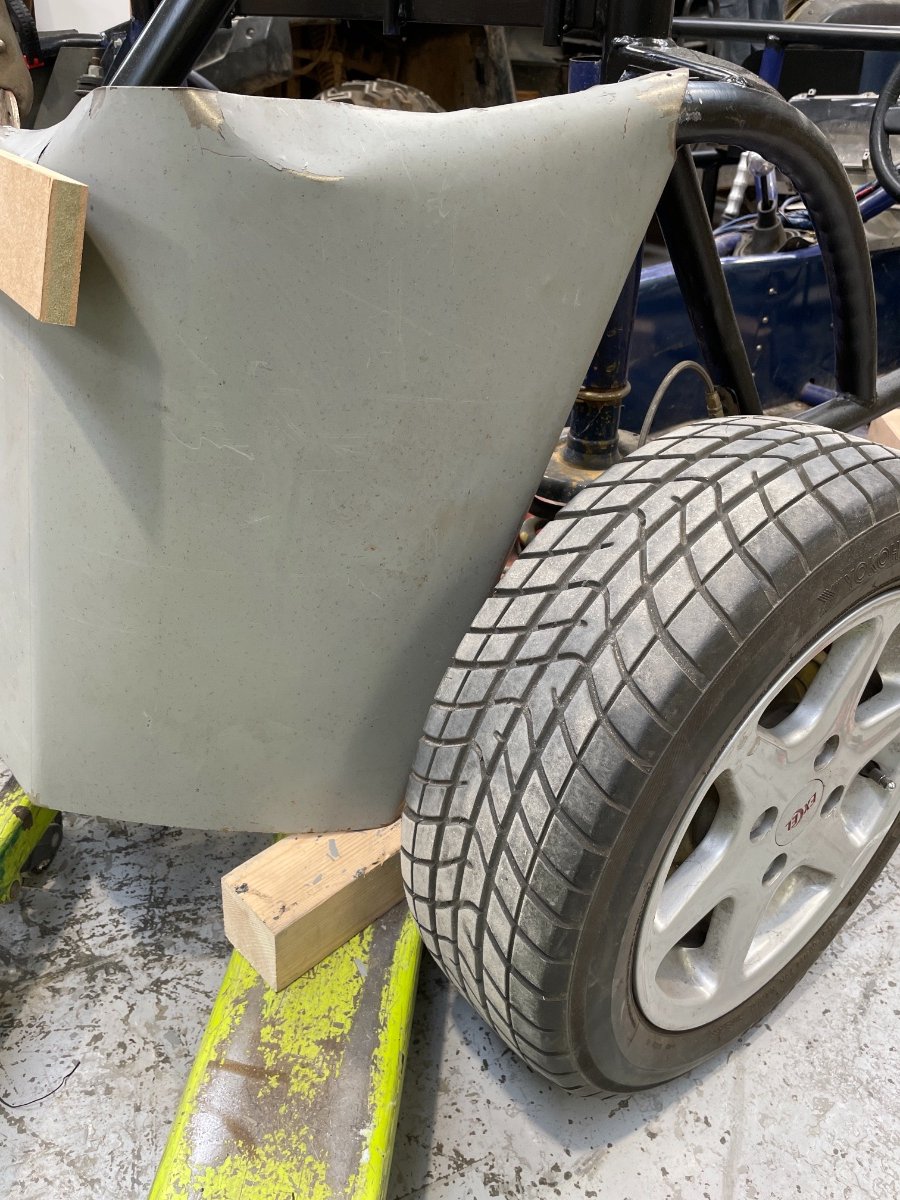

One step ahead, jacked up the panel with a pallet truck





[Bob Tucker]

[Jthorneuk]

Done  thanks for all the help,

now onto the next panel lol

[steve1506]

Can any one advise which order you would apply the bends to this panel as i am about to tackle this on my build



Steve D





[fry61]

Is the back panel a whole piece, which you think (know ) will fit ;side to side?

[steve1506]

Hi Bob good to hear from you after so many years.

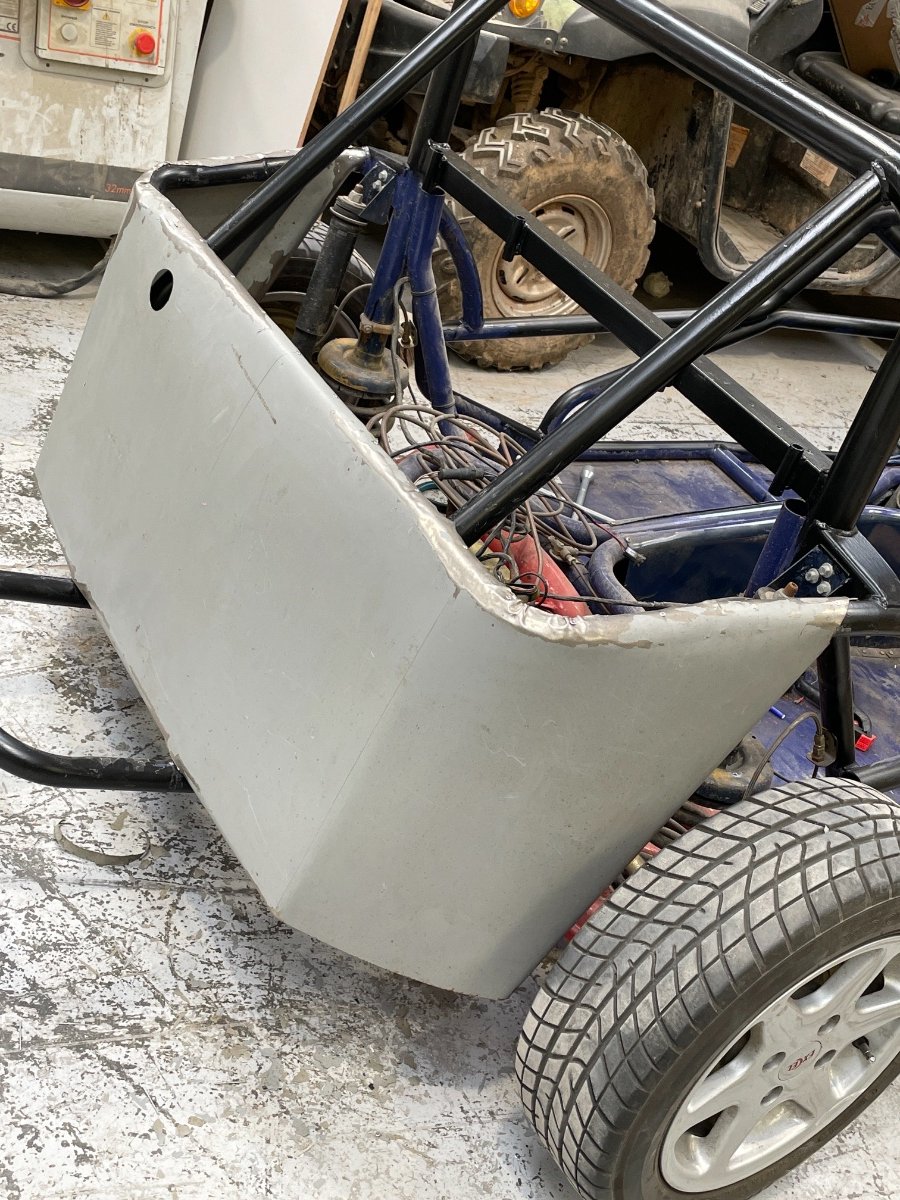

I have been working on this panel this afternoon and got it formed up and held roughly in place with clamps. so still work to do next is to tackle the inner back panel I think i will split it in two and put a joiner piece in the centre. probably an easier way to go.

Steve D

[fry61]

Inner back panel  --- cut vertically down centre line & then slide/ fit each side without paying any attention to other side.  When happy with result there should be enough over lap to join both sides.  I bent riveted the top to the seat belt bar/tube.  For the bottom I made & welded an inside/out triangle (  120 degrees or there-abouts )

Rivet panel to this near up-right web & forward web will carry the back end of floor, which again I cut in two & bent to give the upright of the tunnel. ( allows full access to prop.

HTH  we are down in sunny Cornwall now so not much chance of up country visits.

[steve1506]

Thanks for the info, I have a right angle attached to the back edge of the floor and had intended to attach the back panel edge  to this so similar thoughts
