Hi,

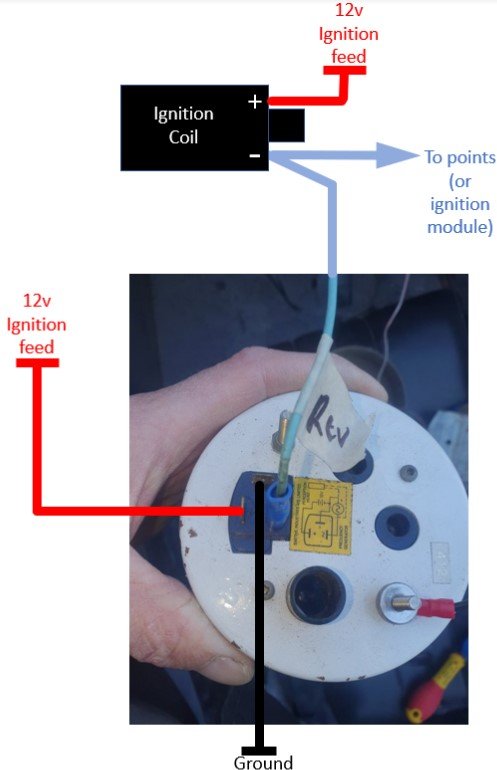

If I was going to connect that rev counter to a vehicle with an ignition coil I would probably try wiring it like this:


Is this how you've already tried it? If no, then try this way, if yes what was the outcome?

  • Like 1
  • 2 weeks later...
Posted

Hi sorry for late reply thanks for the great pic. Rev counter works at t0% output with the sender and live cables attached. If I hook up the earth lead it reads nothing at all???

Posted (edited)

I would suggest then it's a tacho designed for a vehicle (possibly a diesel, although the scale is high (10k)) which has a magnetic sensor to generate the pulses (there's reference to "perception head" on the cct diagram). The number of pulses per revolution on its intended vehicle (induced by a toothed wheel perhaps) may not match the pulses of a 4 cylinder ignition coil based vehicle.

Edited by RedTrev
Posted

Thank you I think you are right. It just doesnt match vehicle.



Can you advise on one that would?  Or a supplier I could ask?



Thanks



Kris
