2B Sliding Pillar 'knock Down And Rebuild'


Sid76
 Share

Recommended Posts

Hello all



I thought i would have a go at starting a build diary...



The story so far…We moved house in the summer of 2014. To my luck (albeit my wife (Jo) would say otherwise) the house came with a car in garage! I had always hankered after a seven type car! :clapping:



After cleaning up the garage - and sorted out some parts this is what i had been left with;






Not bad i thought. After a bit of digging around i found this forum and agentzed, Ian & Carole and tazzzzman1 helped me to identify that i had a Sliding Pillar car.






The engine turned over as well - yippie. However, i will be covering to an unleaded head at some stage. I do know that i have a fast road cam.






So, i made the decision as the car had never been finished to strip the car and start over. I have the V5 and i will at some stage have to write to Ford to verify the age of items (Engine, Gearbox and Diff) for the IVA. Stripping it will give me a chance to recondition and clean bits up and i will be safe in the knowledge i know my car.












Most of this work took place in September 2014.

Link to comment
Share on other sites

The strip continues into October - I have taken a lot of the body panels off;






I am trying to take it to pieces methodically (will i ever get the engine out?!?!?) - i am boxing and labelling at i go.






Does anyone know the size of this tank? I am also going to install a fuel pump - has anyone done this and have you got pics of how you have done yours?






Looking at the firewall and the strength of the pedal box and steering column. I am going to strengthen all this up when i rebuild. I am also going to change the alligator bonnet for a conventional scuttle and bonnet option.






However, when taking the panels off. The cover that was on top of the gearbox held a little secret...






like most of you the wiring keeps me awake all night!!! I will go through it and strip out whats not needed. I have hung it up on the wall and using hooks i have hung this up with a very dodgy drawing outing the whole car.






More on the wiring later...

  • Like 1
Link to comment
Share on other sites

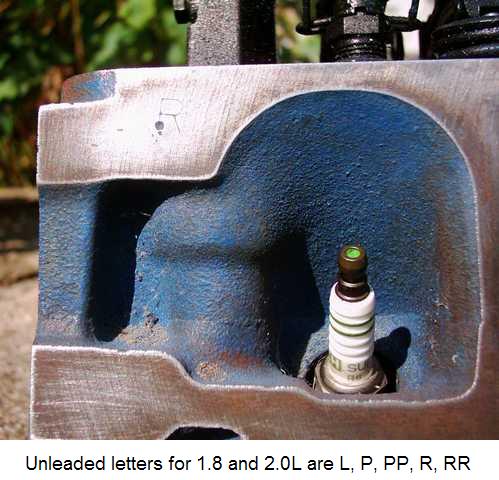

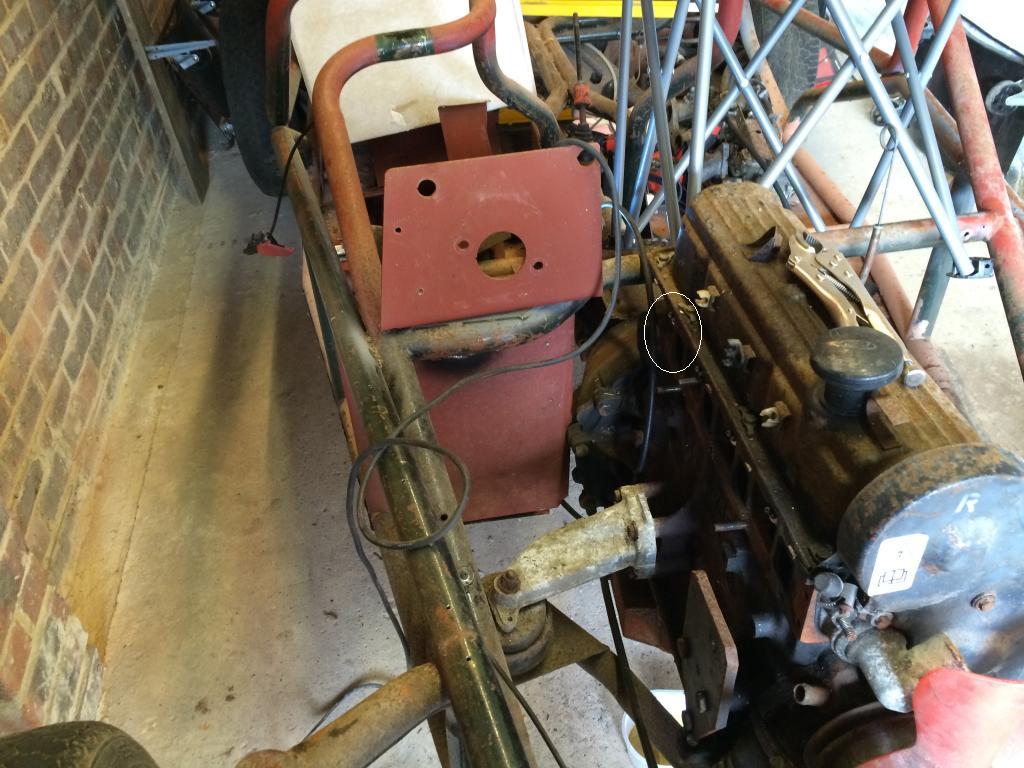

Hello and welcome. There may be good news on the unleaded conversion. Many later pintos were unleaded. All the fuel injected ones for starters. What size is the engine? They should have a letter stamped on the head to manifold machined face in the position shown, just behind sparkplug 4. Below are pics of where to find it and the mark on my old pinto head.
