Throttle linkage to Weber carb

[Brian75]

Hi all,

I've removed bike carbs and replaced with a new 32/34 DMTL Weber, however, I don't have any of the linkages/levers needed to connect the throttle cable with the carb. Searching online and speaking to several suppliers has also caused more confusion. From this photograph could anyone tell me what I need to connect this lever to the cable?

I've been sent this but can't see how it would fit.

Universal Throttle linkage Kit DMTL | Webcon UK Ltd

Any advice much appreciated.

[Bob Tucker]

Undo the nut on the end of the spindle, remove the bracket with the slot. Replace it with the bracket that has the quadrant. I cant see from the picture where the outer cable is clamped, but it should be clear once you have it in front of you.

[Brian75]

Thanks Bob. If I understand correctly the throttle linkage from Webcon is what I need but some kind of clamp for the throttle cable is missing - this is probably why I can't understand from the image how it would operate.

[Bob Tucker]

I think the nickel colooured bracket will bolt to the top of the carb and the outer cable will fit to that. You may also need a hollow bolt with 2 nuts that adjusts the length of the outer cable. Ask webcon if they have an instruction sheet they can send you.

[Brian75]

[blue]

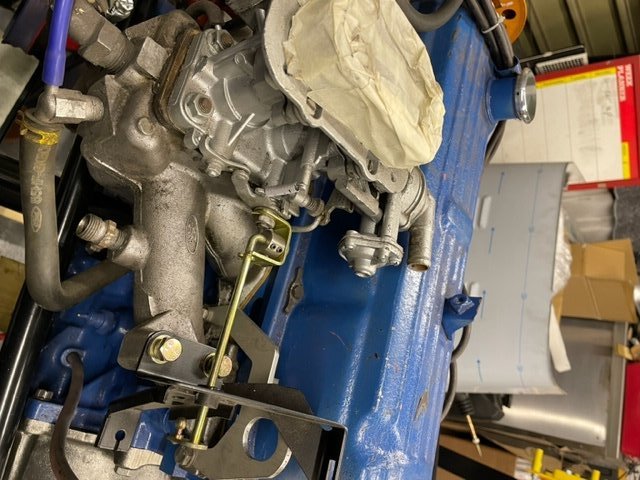

This is the original throttle linkage

[niduncan]

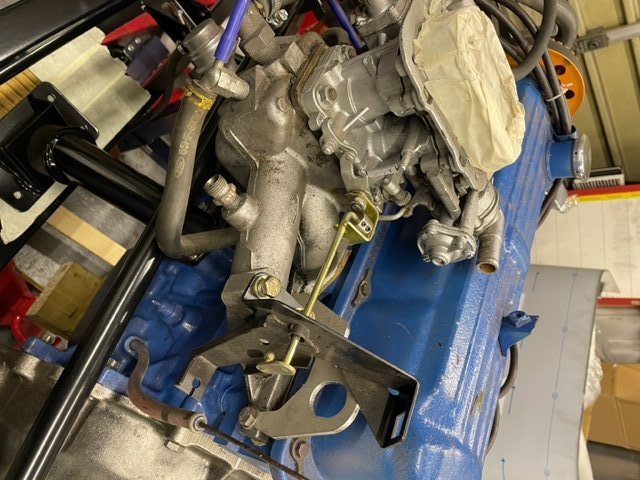

This is what the original linkage looks like when it is fitted.



[Sparepart]

I'm not 100% sure about this, but on my car the carb is the other way round, with the throttle cable coming to the rear of the inlet manifold. The picture with the red cam cover shows this, but the first picture looks like a view from the front of the car, and the throttle shaft pointing forwards, which not the right way round. This doesn't answer you question about how the linkage works, but if it is the wrong way round the cable may not reach or have the correct approach to the mechanism.

[toriitom]

2 hours ago, Sparepart said:

I'm not 100% sure about this, but on my car the carb is the other way round, with the throttle cable coming to the rear of the inlet manifold. The picture with the red cam cover shows this, but the first picture looks like a view from the front of the car, and the throttle shaft pointing forwards, which not the right way round. This doesn't answer you question about how the linkage works, but if it is the wrong way round the cable may not reach or have the correct approach to the mechanism.

I thought the same



[2bTom]

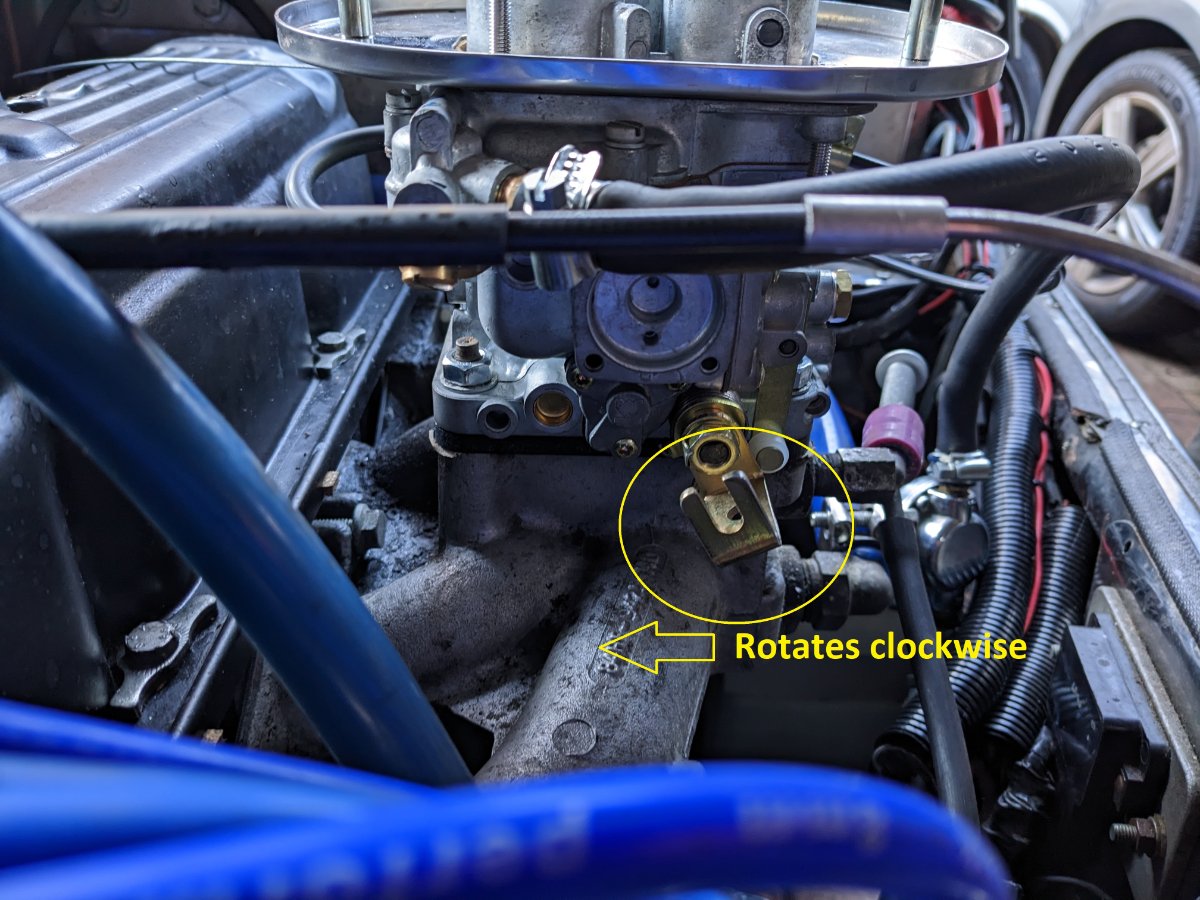

This is how mine is set up if it helps.

[Brian75]

Thanks for all the replies, very helpful. The carb does look to be on the wrong way and that linkage kit looks like it could work - need to go look at the manifold for the bracket. Weirdly though I bought the new Weber carb from FastRoadCars and spoke to him about the linkage but no suggestion of this, although mine is the DMTL and not DGAV.

[Darren Knowles]

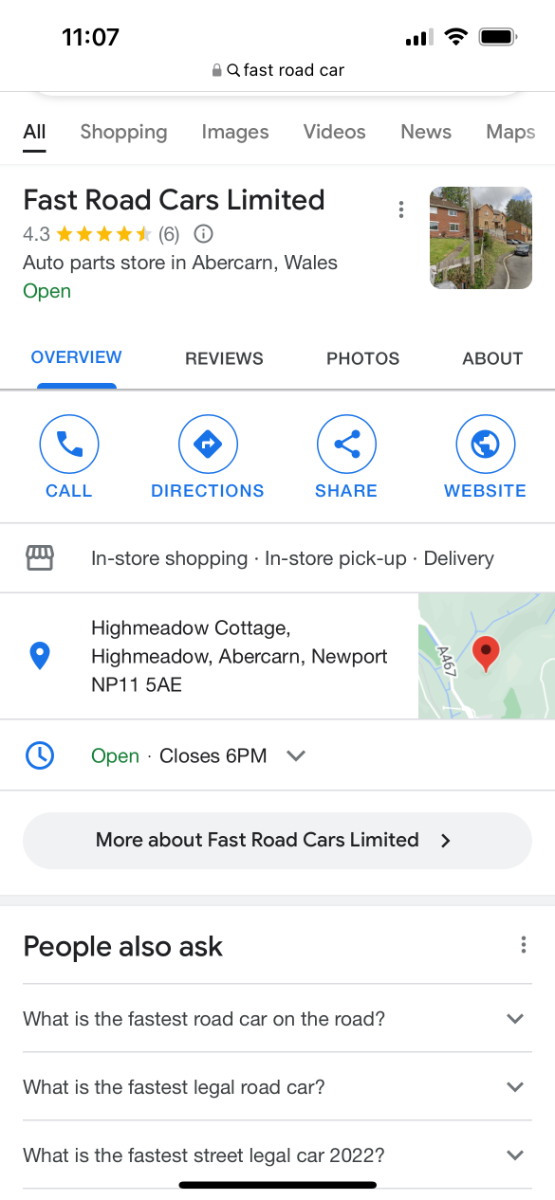

Try fast road cars ltd , i had complete manifold and carb he builds them up so i guess he would sell linkage , you will probably need  a cortina throttle cable and retaining clip as well to suit

[Peter Bell]

You’ve confused yourself by putting the carb the wrong way around, rotate it 180deg and it should make sense including the 2 mounting holes for the bracket.

[Brian75]

Yes, I've realised that from the photos above. It was actually my mechanic who fitted it!

[toriitom]

4 hours ago, Brian75 said:

Yes, I've realised that from the photos above. It was actually my mechanic who fitted it!

Where does he work so that I know to avoid going there
